It is one of the first questions people ask when they start planning a new build: how many piles am I actually going to need? It is a completely reasonable thing to want to know — pile count drives a significant portion of the project cost, and having at least a working estimate in your head before the first contractor conversation puts you in a much stronger position.
The honest answer is that the precise number comes from an engineer reviewing your structure, your soil conditions, and your load requirements. But the practical answer — the one that helps you understand what you are dealing with before you pick up the phone — involves a handful of variables that are not difficult to work through.
This article explains each of those variables, gives you realistic reference ranges for common Alberta structure types, and helps you understand why two seemingly identical projects can end up with different pile counts.
The Variables That Drive Pile Count
Pile count is not a simple square-footage calculation. It is the output of four intersecting factors, each of which can push the number up or down independently of the others.
1. Structure Type and Total Load
The most fundamental driver is what you are building and how much it weighs — both the dead load (the structure itself) and the live load (occupants, contents, snow accumulation on the roof).
A single-story stick-frame home distributes its load across a continuous perimeter and interior beam system, with piles at regular intervals along each beam. A two-story home carries roughly double the dead load at the same footprint. A steel agricultural shop with a heavy snow load rating for Alberta winters puts significant point loads at each column base. These differences translate directly into pile count and individual pile sizing.
Load also determines helix diameter. A pile designed to carry 30,000 lbs needs larger helices than one designed for 15,000 lbs. Larger helices reach bearing capacity at greater depths in many soils, which affects installation time but not necessarily pile count.
2. Pile Spacing and Beam Layout
Screw piles support a structure via a beam system — typically steel or LVL (laminated veneer lumber) beams that span between pile caps and carry the floor system above. The spacing between piles along any given beam is constrained by two things: how far that beam can span without excessive deflection, and the load each pile needs to carry.
A common rule of thumb for residential construction is to space screw piles 8 to 10 feet apart along each beam run. This is a reasonable starting point, but it is not a universal rule. In weak soils where individual pile capacity is lower, you may need tighter spacing to keep each pile within its rated load. In higher-capacity soils with well-engineered beam designs, 10 to 12-foot spacing is achievable.
The beam layout itself — how many parallel beam runs the structure requires, and where they are positioned — determines the total pile grid. A 24 x 24-foot garage on two parallel beams has a fundamentally different pile layout than a 24 x 24-foot garage on three beams.
3. Soil Bearing Capacity
This is the variable most homeowners do not think about until their contractor raises it, and it can have a larger effect on pile count than structure size.
Soil bearing capacity — the load a unit area of soil can support without failing or settling excessively — varies enormously across Alberta. Dense glacial till can achieve bearing capacities of 3,000 to 5,000 lbs per square foot or more. Loose silty fill, soft clay, or organic soils may achieve a fraction of that. The lower the soil capacity, the more you rely on pile depth and helix surface area to achieve the design load — and in some cases, the more piles you need to keep individual loads within what the soil can accept.
Formal soil testing (a geotechnical investigation) produces precise bearing data. For smaller residential projects where a formal geotechnical report is not in the budget, experienced contractors use regional soil knowledge and the torque feedback from installation itself as a real-time indicator of capacity. Triad installs across southern Alberta regularly — we have a strong working knowledge of what the soils do in each area.
The torque value recorded during installation is essentially a live bearing test for each individual pile. If a pile reaches design torque earlier than expected, the soil is stronger than assumed. If it takes longer, the engineer adjusts. This feedback loop is one of the genuine advantages of screw piles over pre-determined concrete designs.
4. Engineer’s Judgment and Local Code Requirements
Even with identical structure types and similar soils, two engineers may produce slightly different pile layouts based on their preferred safety factors, beam sizing assumptions, and interpretation of local code requirements.
The Alberta Building Code governs foundation design for permitted structures. For buildings requiring a building permit, the engineer’s stamped drawings define the pile layout — not the homeowner’s estimate, not the contractor’s preference, and not this article. What you can do with the information in this article is arrive at that conversation informed.
Reference Ranges by Structure Type
The table below provides typical pile count ranges for common Alberta structure types. These are planning references, not engineering specifications. Actual counts may fall outside these ranges depending on the variables above.
| Structure Type | Typical Pile Count | Typical Spacing | Notes |
|---|---|---|---|
| Detached garage (24’ x 24’) | 6-10 | 8-10 ft. | Perimeter + centre beam |
| Single-story home (1,200–1,800 sq ft) | 14-22 | 7-10 ft. | Soil & beam layout dependent |

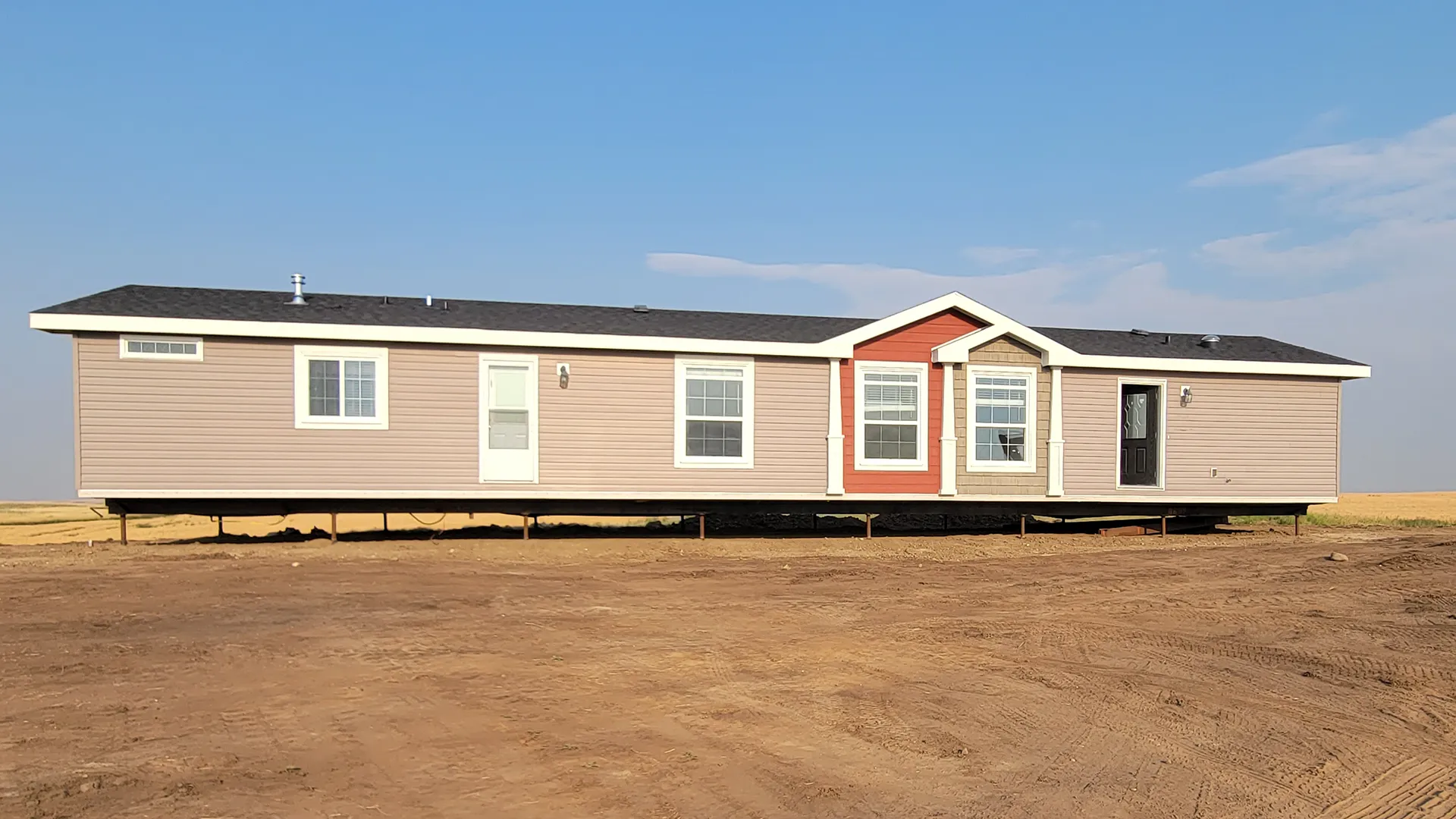

| RTM or modular home | 12-24 | Per manufacturer specRestricted (frost, curing risk) | Mfr drawings dictate layout |
| Agricultural shop (40’ x 60’) | 16-28 | 8-12 ft. | Wind uplift sizing matters |
| Deck (16’ x 20’) | 4-8 | 6-8 ft. | Post locations vary by design |
| Mobile home (singlewide) | 8-14 | Per frame spec | Tie-down points critical |
A few important notes on reading this table:
- Ranges are wide for a reason. The low end assumes favorable soil, optimal beam layout, and lighter loads. The high end reflects challenging soil, heavier loads, or structures with complex geometry.
- Pile count and pile size are related but separate decisions. A project might use fewer piles with larger-diameter helices, or more piles with smaller ones. The engineer optimizes this tradeoff based on cost and soil performance.
- RTM and modular homes are governed by manufacturer drawings. The pile layout must align with the manufacturer’s specified bearing points. Do not estimate RTM pile counts from general rules — get the manufacturer’s foundation spec sheet before planning.
Why Two Identical Garages Can Have Different Pile Counts
This is the question that trips people up most often. A neighbour built a 24 x 24-foot garage last year and used eight piles. You are building the same size garage and your contractor is quoting ten. Is someone wrong?
Almost certainly, no. Here is why this happens:
- Different soil conditions. Your lot sits on different material than your neighbour’s. Even within a single subdivision, soil profiles vary. If your site has softer near-surface soils, the engineer may specify tighter spacing or additional piles at critical load points.
- Different beam layouts. A two-beam layout uses fewer piles than a three-beam layout, but the three-beam design may allow a lighter, less expensive beam — a cost tradeoff that can actually save money overall. Your contractor may be optimizing for something your neighbour’s contractor did not.
- Different structural specifications. Did your neighbour’s garage include a heavy storage loft? A hydraulic hoist? These change the load assumptions and therefore the pile count and sizing.
- Different engineer assumptions. Engineers are not robots. Two qualified engineers reviewing the same project may make different but equally valid design choices. Both are correct within the tolerance of the code.
The number that matters is the number your project engineer stamps. Everything before that is estimation.
How Triad Approaches Pile Count Estimation
When you call Triad for a budgetary estimate, here is what happens on our end:
- We establish your structure type, footprint, and intended use. These three inputs let us determine load class and apply our regional experience.
- We discuss your site. Access, slope, and any known soil conditions all factor into the initial estimate.
- We produce a pile count estimate based on typical engineering outcomes for your structure type in your area. This estimate is honest about its assumptions — it is a planning number, not a construction document.
- The estimate breaks out pile count, depth assumptions, cap welding, and the engineering oversight package separately. You can see exactly what drives the cost and where it could move.
Once the project moves to engineering, the layout drawings confirm or refine the pile count. In our experience, the budgetary estimate lands within 10 to 15 percent of the final engineered count for straightforward residential projects. Complex sites or unusual structures carry more variance.
One thing we do not do: pad pile counts to inflate project value. Our rebate and referral program is built on repeat business and word-of-mouth. That only works if clients feel the estimate was honest.
Pile Count and Project Cost: What to Know
Pile count is the primary driver of screw pile project cost, but it is not the only one. Here are the line items that sit alongside pile count in any accurate estimate:
- Pile depth. Deeper installations cost more — more steel, more installation time. If your site requires 14-foot piles where a nearby site only needed 10-foot piles, you are paying for that difference even at the same pile count.
- Helix configuration. Single-helix piles cost less than double or triple-helix configurations. More helices are specified when the soil at the primary helix depth is insufficient alone, or when tension resistance is needed.
- Cap type and welding. A standard post base cap is less expensive than a custom-welded bracket for a steel column. Complex structures with unusual connection details add to the cap welding cost.
- Engineering overhead. The engineering package — layout drawings, torque verification review, and stamped completion report — is a fixed-ish cost that scales somewhat with complexity but is largely independent of pile count. On a small project, it is a meaningful percentage of total cost. On a large one, it is a small fraction.
- Triad charges a single mobilization fee. Adding a few extra piles to an existing mobilization is very cost-efficient. Running a second mobilization for a handful of additional piles is not. If you are on the fence about expanding your structure, building to the larger footprint in one mobilization almost always pencils out.
The Bottom Line
You cannot know the exact number of screw piles your project needs without an engineer reviewing the specifics. But you can arrive at that conversation with a realistic ballpark, an understanding of what drives the count, and the right questions to ask.
If you are planning a build in Alberta — a home, a garage, a shop, an RTM, or an agricultural structure — Triad can provide a budgetary estimate that gives you a realistic pile count and cost range to work with. We will tell you what assumptions the estimate is built on, and we will flag anything about your site or structure that could push the number in either direction.
